Guglatech Ultra Fuel Filter for KTM 690 2010+ Key Cap ONLY

ONLY KTM 690 original key cap rear tank filter, must have the after 2010 neck high KTM flange, KTM code 76507108050
In stock
Only 1 left

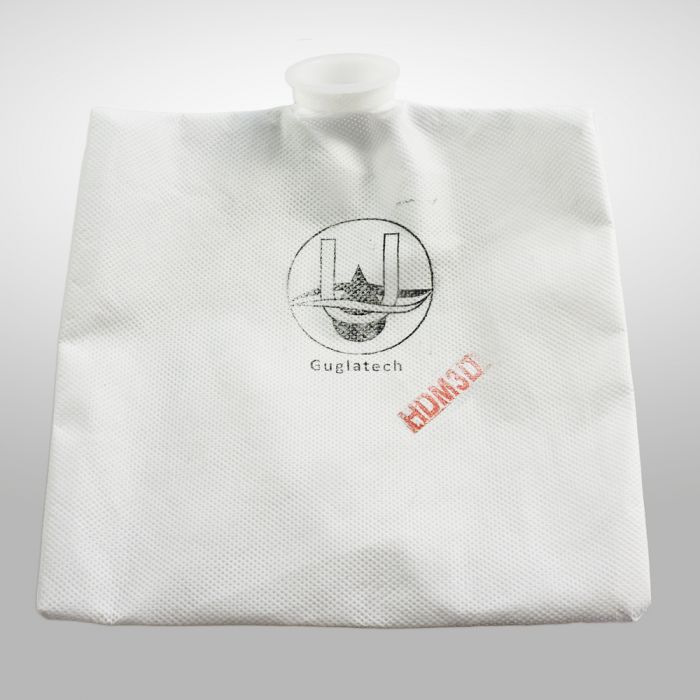

New drop-in design fuel filter HDM3D Media to mount below the original fuel filler flange


To mount it, simply remove the "shield" shaped flange, insert the media helping the corners with the head of the cable tie (in the package), alligne the filter with the bike axis, pussh the cap to be level with the tank surface and simply mount back the "shield", done.

For the CJ Design billet small cap Acerbis adapter, the filter can be either mounted on top below the screw cap or under the adapter.

The new filter combines the extra fast HDM3D filtering media with the installing-friendly drop-in adapter, filter has a huge filtering surface of almost 1200 square cm combining a very fast refueling with optimal EFI fuel pump and fuel filter protection and the latest and unique welded edges tehcnology.

This will protect the fuel pump, the original strainer works between 60 and 100 microns, and prolong the fuel filter life (KL15 or KL97 depending on year of production)

In both cases the filter is really small and can clog very fast, plus the fuel pump is exposed to all kind of particles and water contamination, the neck prefilter will prevent all this saving the EFI system and preserving it for many tens of thousand of KM.

You think that the petrol, even the one you're buying around the corner of your house, is clean? think twice :)
This filter will help you prevent to keep changing fuel pump filters to prevent rough running or pump/EFI problems, like the one in the pictures above. While prefiltering during refueling, you can easily clean fuel pump filters instead of continously changing them to keep the motor running smoothly.

After mounting your bike will be protected from contaminated petrol, keeping the whole EFI system in top-condition.

The media is washable, and thanks to it's huge surface, will last for many thousand of km. You can extract it, empty it and wash it should the case arise.


Ah, service info, ktm has changed the "cap flange" under cap in recent models, this flange presents the tank breather with a non-return valve integrated that allows you to close the one present on the cap for the first series, no need to change the cap at all. Our advice is to mount the new series with the new green viton o-ring , the old flange will lose it's shape over time and will start to warp and leack, the real danger is the water that comes in the petrol tank as well as the petrol that will leak out.

KTM old part 76507008050 KTM new part 76507008150 RECOMMENDED ONLY FOR 990 SM/SMR/SMT

KTM PARTS TO BUY FOR ALL 690 REAR TANK flange code 76507108050, code 0770050030
More Information
Manufacturer Guglatech
