Guglatech Ultra Fuel Filter for BMW R1200 GS/A, R Nine T Urban GS all 1200 Air and Oil except RT

BMW 1200 08-13 all models with the red nozzle Fits all BMW R1200 GS/A, R Nine T Urban GS , all the models R1200 Air and Oil, except for R 1200 RT

Typically you’ll need to remove the fuel pump assembly to install this kit.

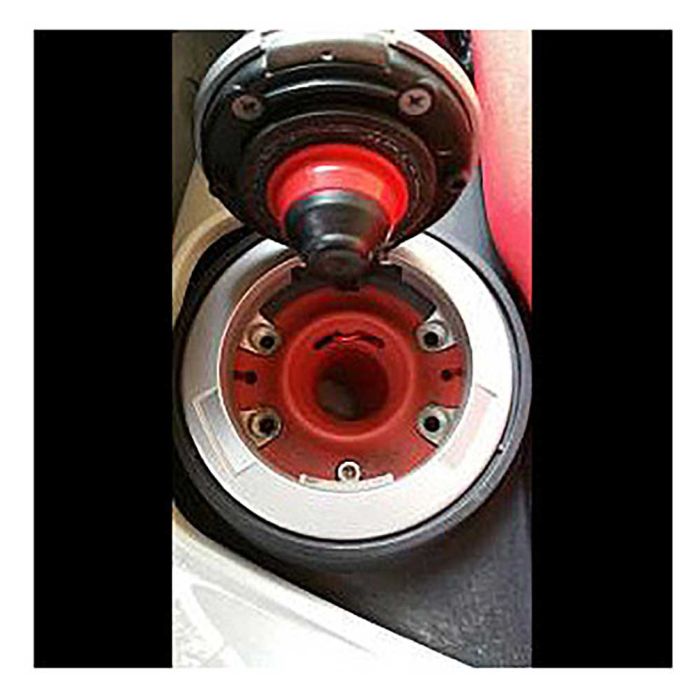

1. Remove cap assembly.
2. Pull up the nozzle assembly
3. Fit the filter over the end of the red tube
4. Secure the filter with the aluminum wire, hooking it through a vent hole
5. Roll up the filter, insert into tank with the red nozzle
6. Secure the cap
7. Spread the filter wings carefully using block end of a zip tie or similar

The HDM3D media filters down to 10 Microns, which will allow a very good protection of the fuel pump and main filter. WATER and other contaminants (liquid and solid) will be separated during refuelling.

Some models may have a plastic adapter, simply pull it our of the neck and insert the filter.

Expedition media, XXL+ 1200 square cm of filtering surface, simply mounting and fast refuelling, washable and long lasting.

The original BMW fuel filter system has a strainer working between 40 and 60 microns, made from nylon mesh, which is totally inadequate to protect the fuel pump.

This filtration level will both preserve the fuel pump and prolong fuel original filter life, thereby avoiding nasty surprises and high repair costs.

When ordering please list your bike’s make, model, and year in the order notes.
<
If your bike has a metal filler funnel you want to order M06006.
